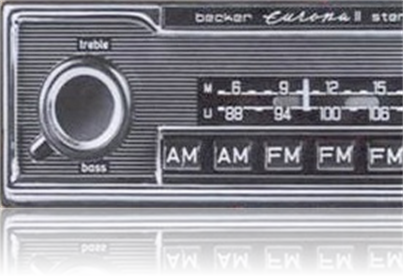

Replacement of Light Bulbs on a
   Becker Europa II Stereo
back
back
forward
forward

back

download

thumbnails on
thumbnails on
thumbnails off
thumbnails off
play

previous
previous

next
next
by Doug Quance
Date: July, 2009

I recently had occasion to deal with burned
out light bulbs on a Becker Europa II Stereo
radio for my 74 280C.

The Europa II Stereo has two lights -
green for illumination and
red for STEREO received.
Replacement procedure:

1.
Tune radio all the way left, or toward the low end of the band.
2.
Pull off knobs and left sub-knob.
3.
Pull off bezel and face plate.
4.
Both bulbs are behind the black panel in the middle of the radio face.  On the left end of the panel you see a slotted sleeve-screw. Loosen that screw with a medium blade.
5.
Slide the black panel to the right, out from under the sleeve-screw, and it will break free of the radio, held only by wires.
6.
The bulbs are in a socket. I was able to replace the bulbs in place. There is a soldered ground to one of the bulb sockets that could be un-soldered if one wanted to pull the bulb sockets out for easier access.
7.
For replacement bulbs I used the wedge base bulbs from a Mercedes instrument panel that I had on hand.
8.
Reverse the procedure to reassemble.
Doug Quance
Face plate removed Black panel with bulbs
Face plate removed Black panel with bulbs
Bulb Project completed
Bulb Project completed
